Project Owner: New York State Department of Transportation (NYS DOT)
Trenchless Contractor: Engineers Construction, Inc. – Williston, VT (ECI-VT)
Project Location: Town of Duane, NY
Trenchless Method: TBM Pipe Jacking – 84-in Hobas FRP, 235-lf
Equipment: Akkerman WM720II TBM, 5000 Series Pump Unit, 524 Haul System

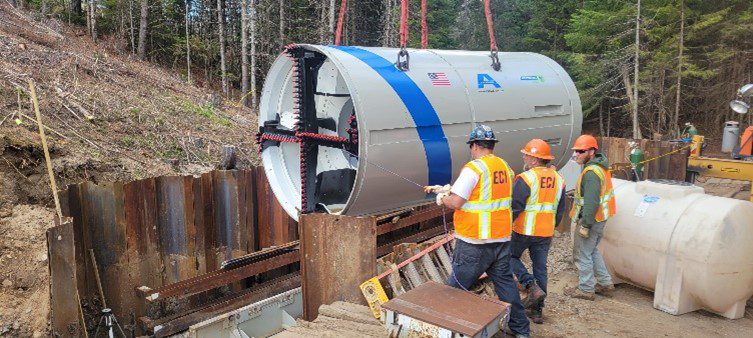

Located in a remote area in upstate New York near the Town of Duane, this trenchless project required a new installation of 84-in culvert that paralleled an existing smaller corrugated metal pipe culvert. The existing culvert had deteriorated over time and was deemed too small for flows exhibited by the Dugway Brook stream.

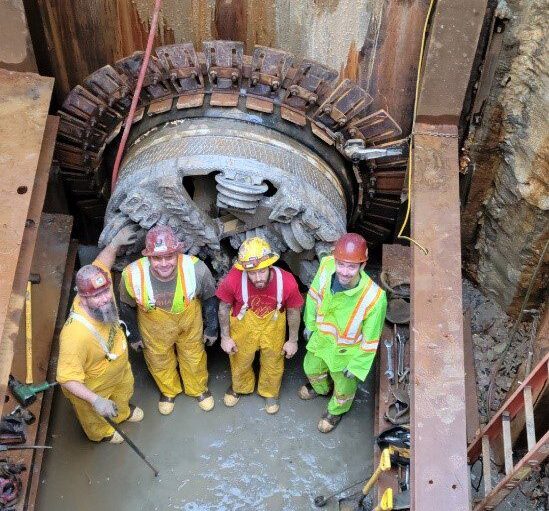

The ECI-VT team mitigated a variety of challenges during the project’s launch, including sudden weather changes as well as raveling sands with potential obstructions, such as buried tree roots, boulders, and fill material that would have been problematic with other trenchless methods. As the crew launched the TBM and progressed towards the roadway, ground conditions became more stable allowing ECI-VT to complete the 235-lf single pass installation of 84-in Hobas online and grade.
Project Owner: City of Beaumont, TX
Trenchless Contractor: Super Excavators, Inc. (SEI)
Project Location: Beaumont, TX
Trenchless Method: Slurry Microtunneling – 48in RCP, 1,301-ft & 1,215-ft (two drives)
Equipment: Akkerman SL60P MTBM System, MT875K Jacking Frame, AZ-100 Guidance System, Akkerman Lube & Jacking System, Derrick TBSS-225 Separation System
Due to alluvial soils with high groundwater conditions adjacent to the Neches River, the City of Beaumont, TX required a new 2516-lf tunnel installed by slurry microtunneling to convey water to a new raw water pumping station. Requiring two drives of 1,310-ft and 1,215-ft, SEI constructed three secant pile shafts along the alignment at depths ranging from 33-58-ft deep. Even though intermediate jacking stations were installed within the pipe string, the IJS stations were not used as the thrust required to complete the drives were less than 200-tons due to SEI’s preparedness.
Mr. Mike Garbeth of Super Excavators, Inc., and Troy Stokes of Akkerman Inc. will be giving a technical presentation on this project, as well as a couple other recently completed projects during the upcoming Microtunneling Shortcourse in Scottsdale, AZ on April 11-13, 2023.
Project Owner: Albuquerque Bernalillo County Water Utility Authority
Trenchless Contractor: RMCI, Inc. – Albuquerque, NM
Project Location: Kirtland AFB – Albuquerque, NM
Trenchless Method: Rehabilitation – Sliplining, 48-in & 66-in Flowtite
Equipment: Akkerman SLS-100 Sliplining System

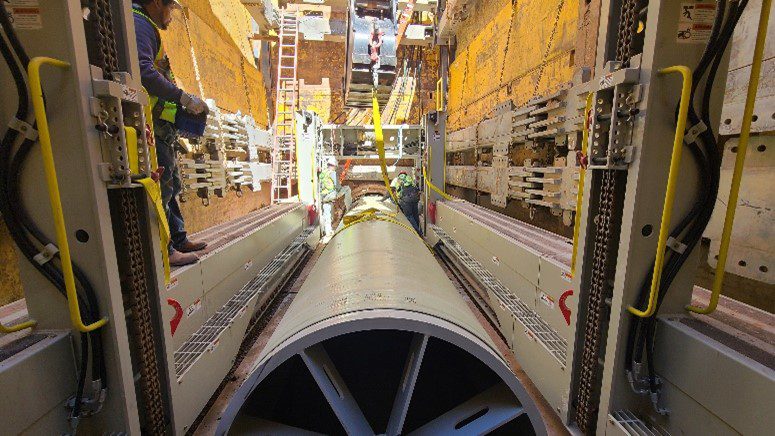

RMCI, Inc. recently completed the first of three sliplining projects with an Akkerman SLS-100 system at Kirtland AFB located in Albuquerque, NM. The initial project required the installation of 66-in Flowtite pipe inside of a deteriorating 72-in RCP trunk sewer while maintaining live flow conditions. Once the equipment was set up and staged, crews pulled back a pipe proofer along the alignment prior to inserting new Flowtite carrier pipe. Due to the amount of sediment captured by the proofer, RMCI crews determined that the host pipe required an additional round of jetting prior to sliplining operations. Once jetted and cleaned, crews began the sliplining process with the Akkerman SLS-100 system achieving 20-ft pipe installations every 5-6 minutes. RMCI, Inc. was able to complete the first 544-lf installation in one shift.
The next phase of the project will include the installation of up to 1400-lf of 66-in Flowtite inside an existing 72-in RCP, as well as 950-lf of 48-in Flowtite inside an existing 54-in RCP sewer by sliplining while the existing sewer is still under live flow conditions.
Akkerman’s Chris Sivesind will be discussing sliplining methods and techniques at the upcoming CUIIC Pipeline Rehabilitation Academy seminar on March 21-22, 2023, in Mississauga, ON. For additional information on this seminar, please visit the CUIIC website at Pipeline Rehabilitation – CUIIC Academy.
Trenchless Contractor: Derech Afar LTD
Project Location: Israel
Trenchless Method: Pilot Tube Microtunneling – Guided Boring, 192ft – 2m Long GRP Pipe (24in)
Equipment: Akkerman 339A GBM System, P100E, 1525 B/E Lube System, PCH22.5 with Increase Kit

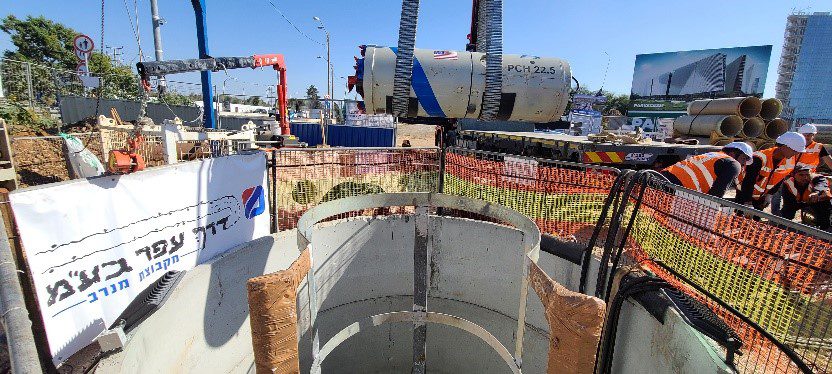

Pilot tube microtunneling projects continue for accurate, small diameter installations in several regions across the globe. Derech Afar LTD, located in Kfar Saba, Israel, recently completed the first of 11 drives with their Akkerman 339A GBM system. Using the three-step method with a Powered Cutting Head (PCH) to increase the borehole diameter to match the diameter of the product pipe during the final step, the 24-in OD GRP was directly installed across the alignment.
At a depth ranging from 20 to 30-ft below grade, the alignment proved to be primarily clay. Derech Afar utilized an Akkerman 1525B/E lubrication system to pump a mixture of Baroid Tunnel-Gel Plus with EZ-Mud Gold, which helped them maintain thrust pressures under 25-tons and rotational torque under 1200 ft-lbs. while installing pilot tubes. Derech Afar continued their lubrication program throughout the process and included the use of high-pressure jetting nozzles on the Akkerman PCH to assist with the clays.

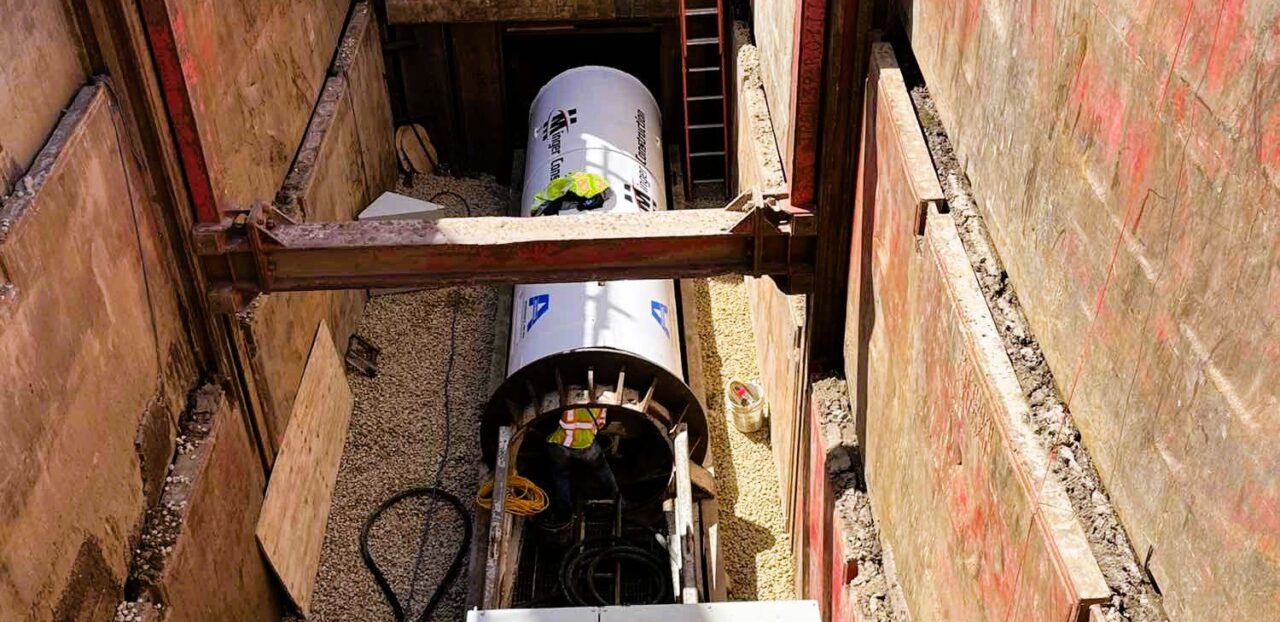

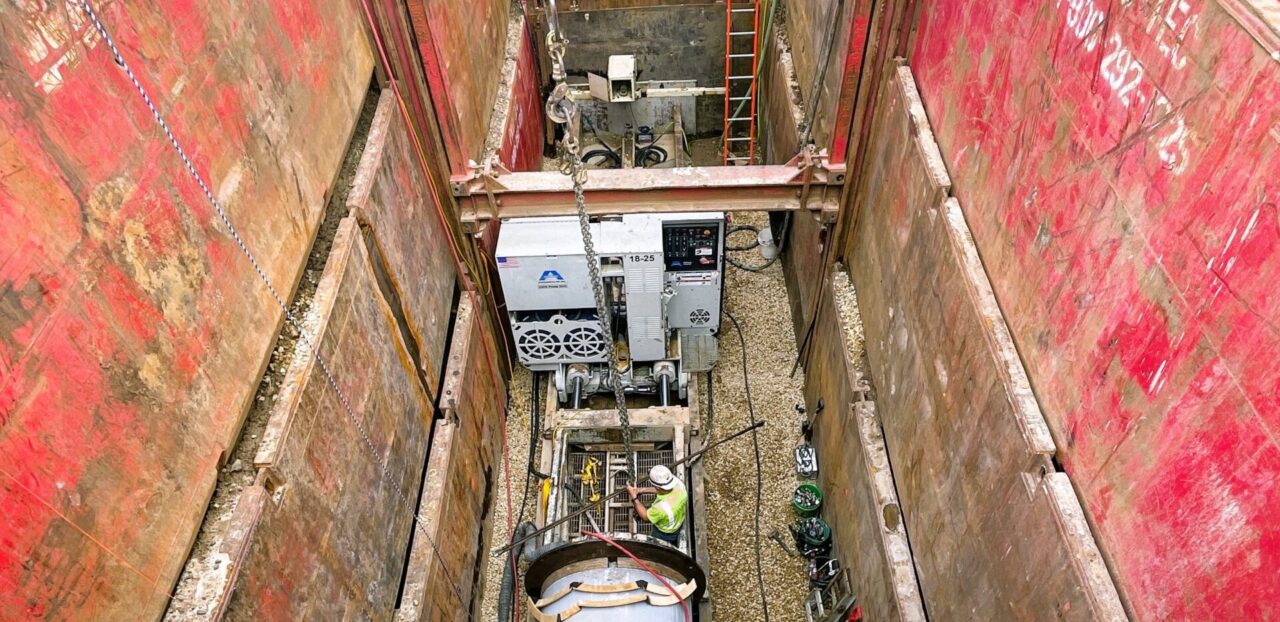

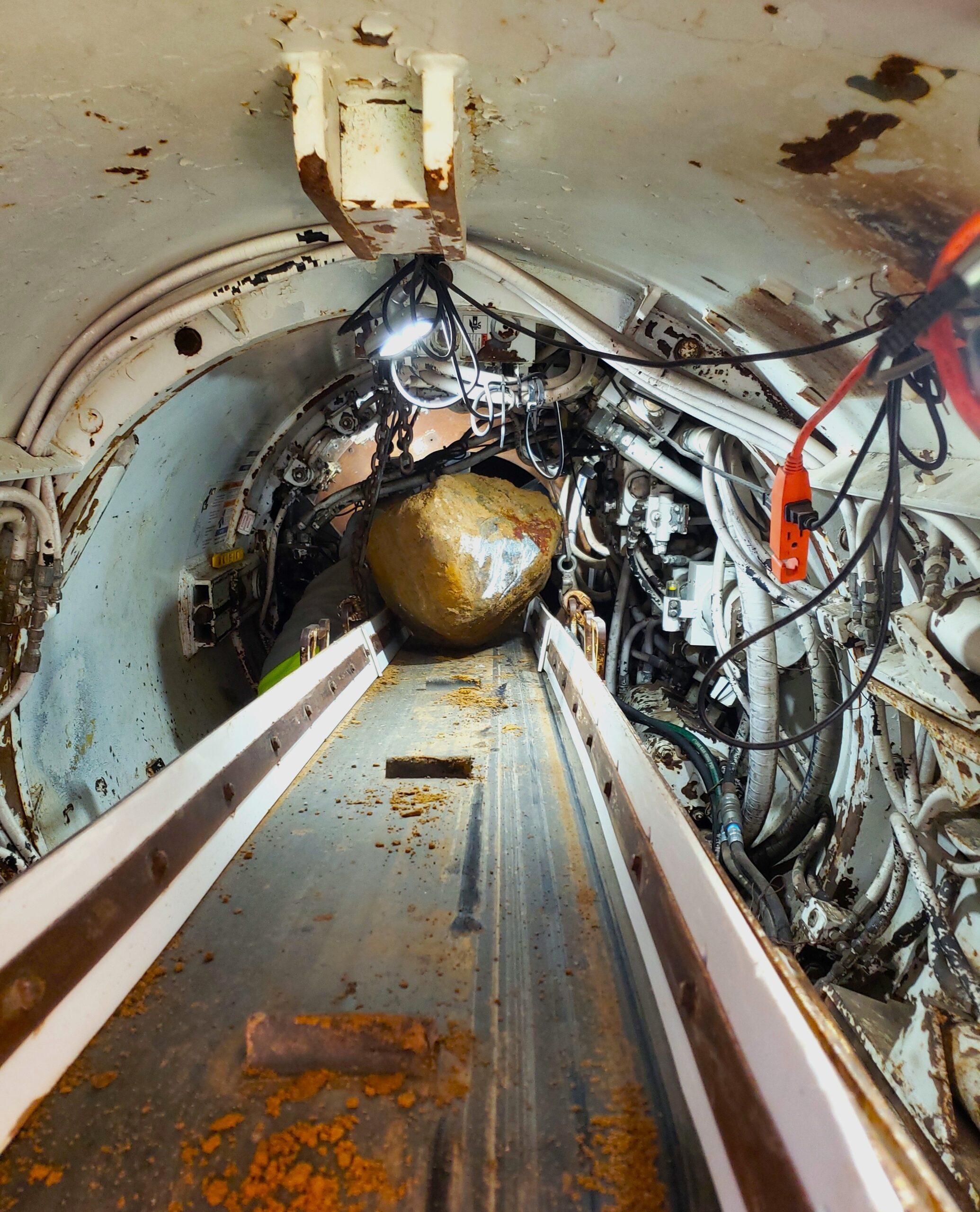

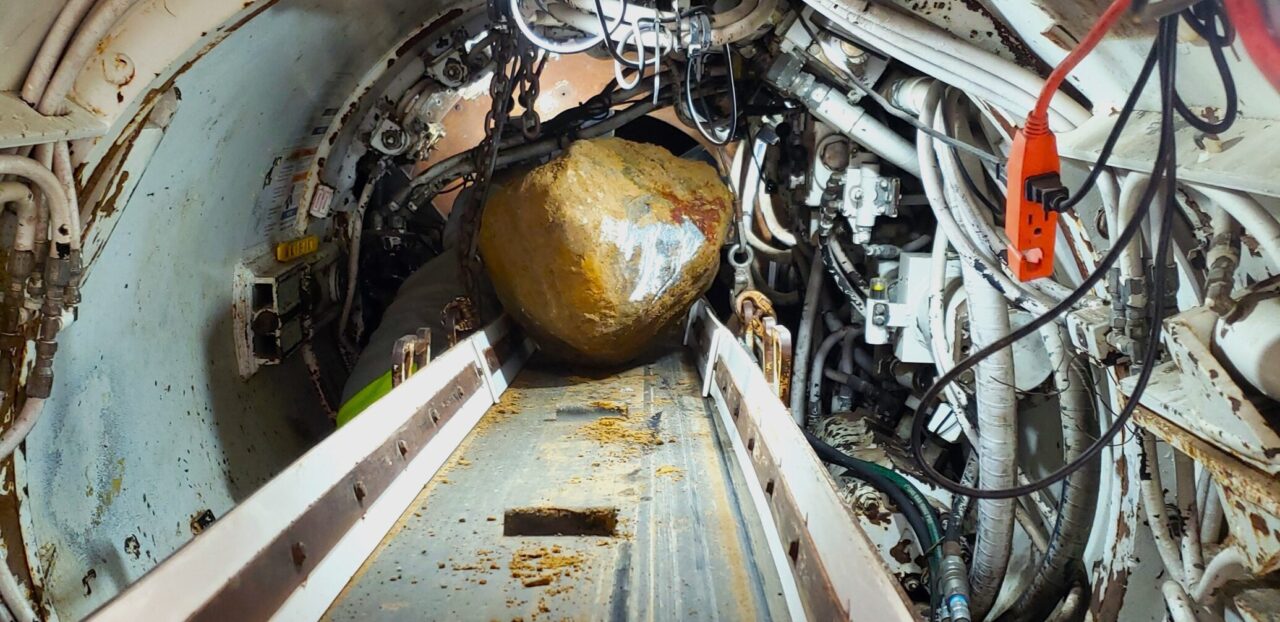

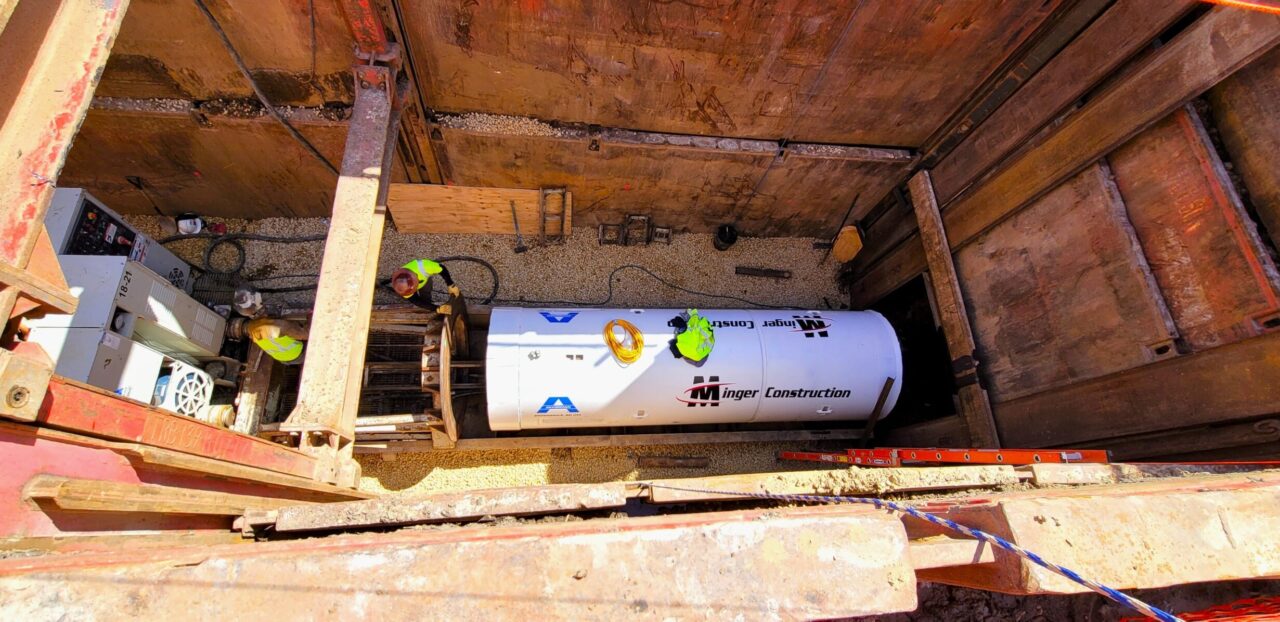

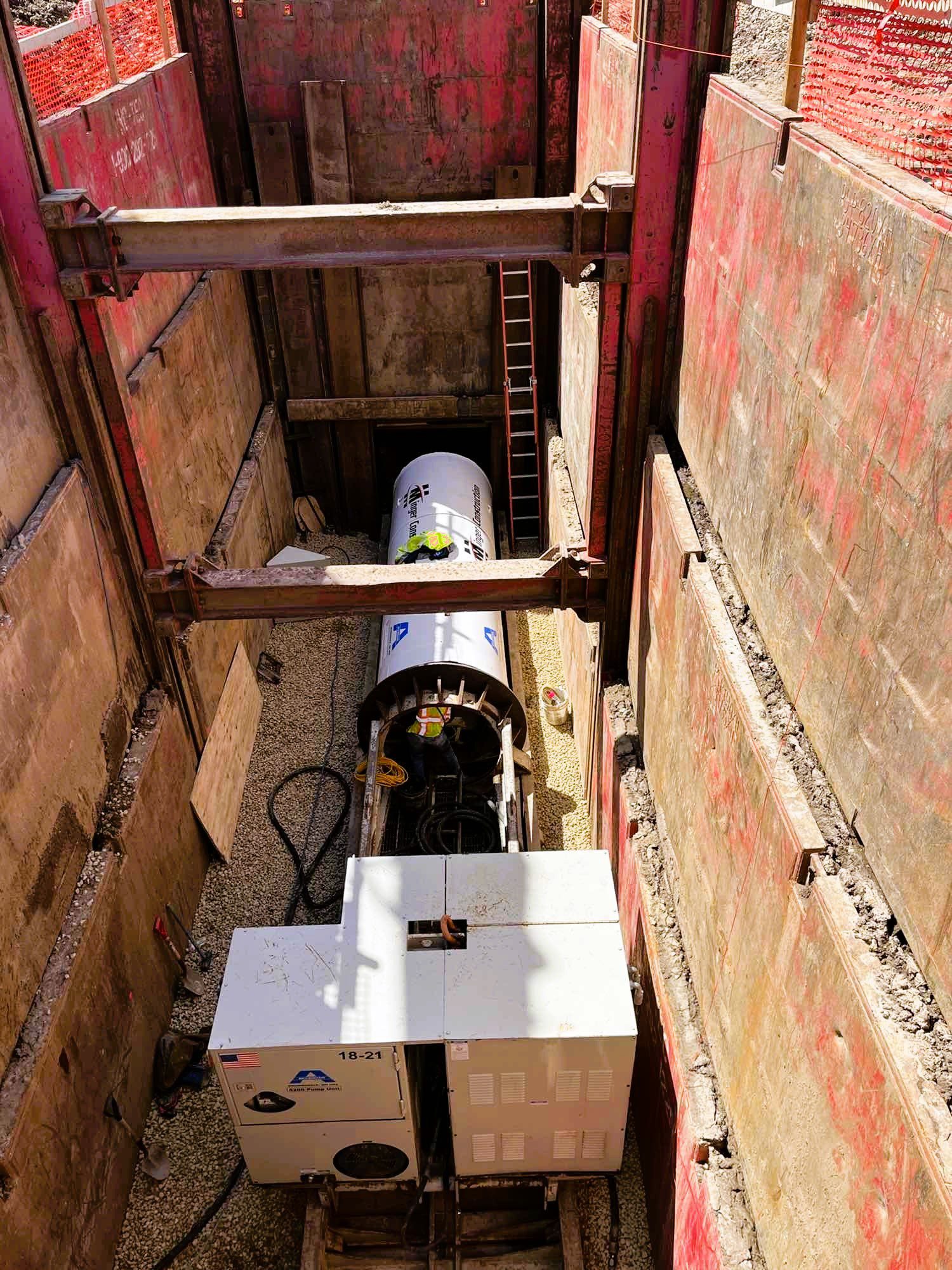

Initially designed as a Guided Auger Boring project to install 30-in steel casing with their Akkerman 240A GBM, Minger quickly took note of the large boulders along the profile. To accommodate the geology, they successfully changed methods and used their Akkerman WM420-I TBM to install 42-in RCP to allow better access to the face while maintaining line and grade.
