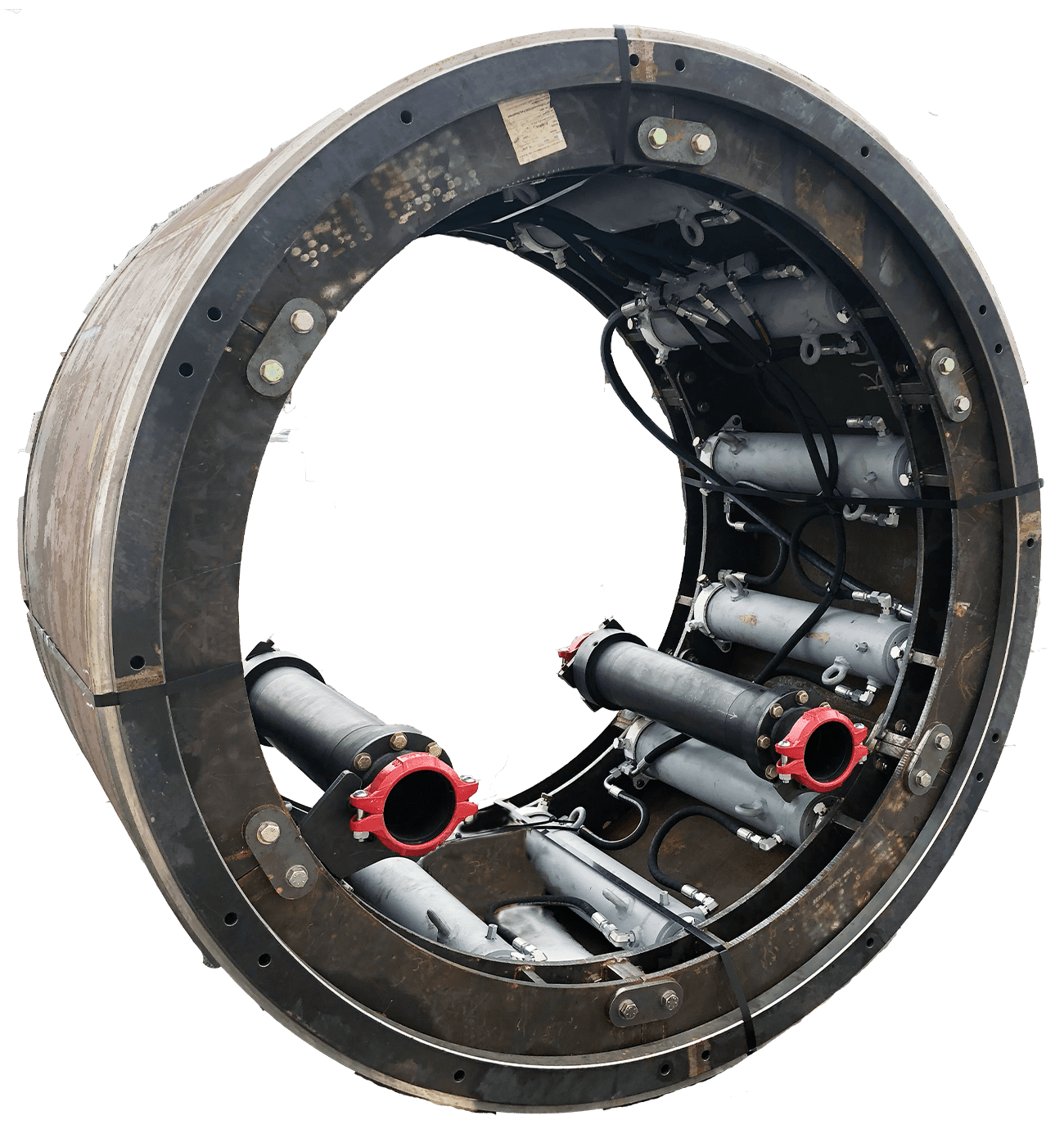

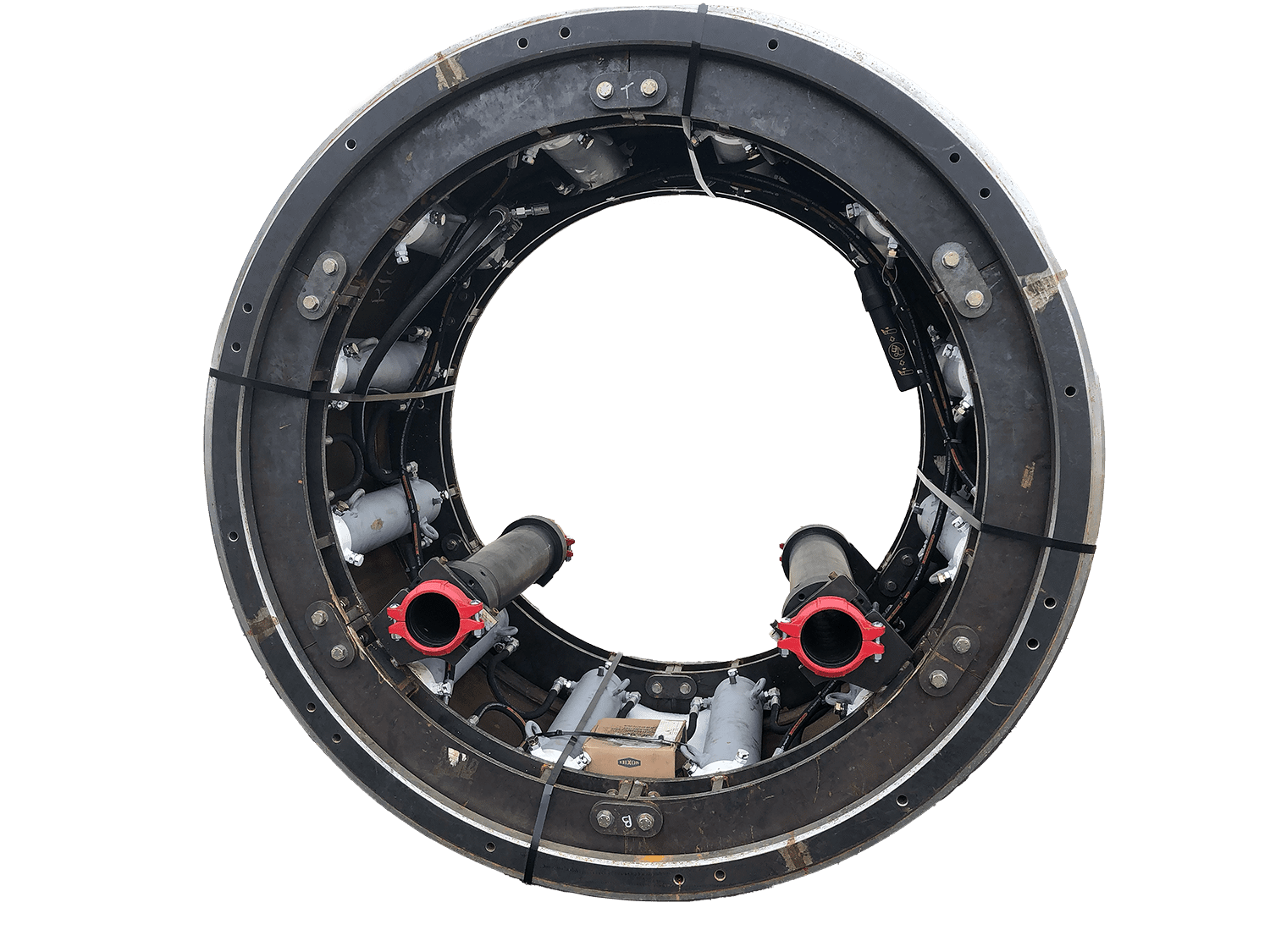

Microtunneling Intermediate Jacking Stations (IJSs) are inserted in the tunnel string at appropriate intervals to distribute thrust loads to facilitate longer drives. IJSs are custom‐fabricated to match a project’s exact pipe outside diameter.

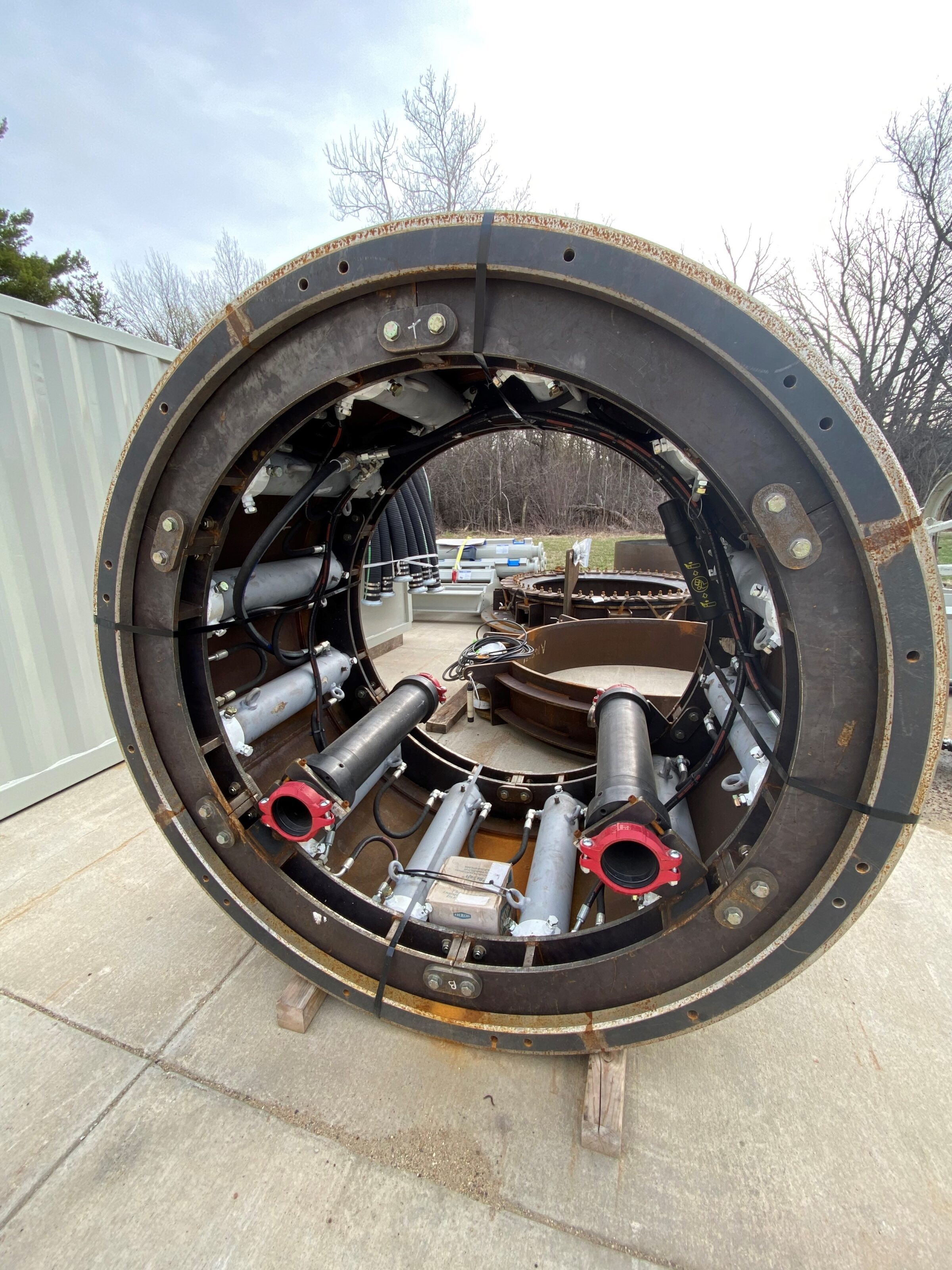

Microtunneling IJSs are sealed to prevent intrusion of ground in the tunnel. They comprise a nonrecoverable steel housing with multiple ram segments, each exerts additional thrust, and are positioned on the steel housing interior ring.

The MTBM operator controls the IJS function from the control container console.

Features:
  • Used to extend drive length potential by distributing thrust load for longer drives.
  • Sealed to prevent intrusion of ground into the tunnel.
  • Comprise a non‐recoverable steel housing with multiples of ram segments that each exert 60‐tons of thrust.
  • Customized to match the outside diameter of the project pipe.
  • Can be configured with custom cylinder options.
  • Custom designed for various types of jacking pipe.
  • Allows for pipe string flexibility on curved alignments.
