Water Jetting & Cooling

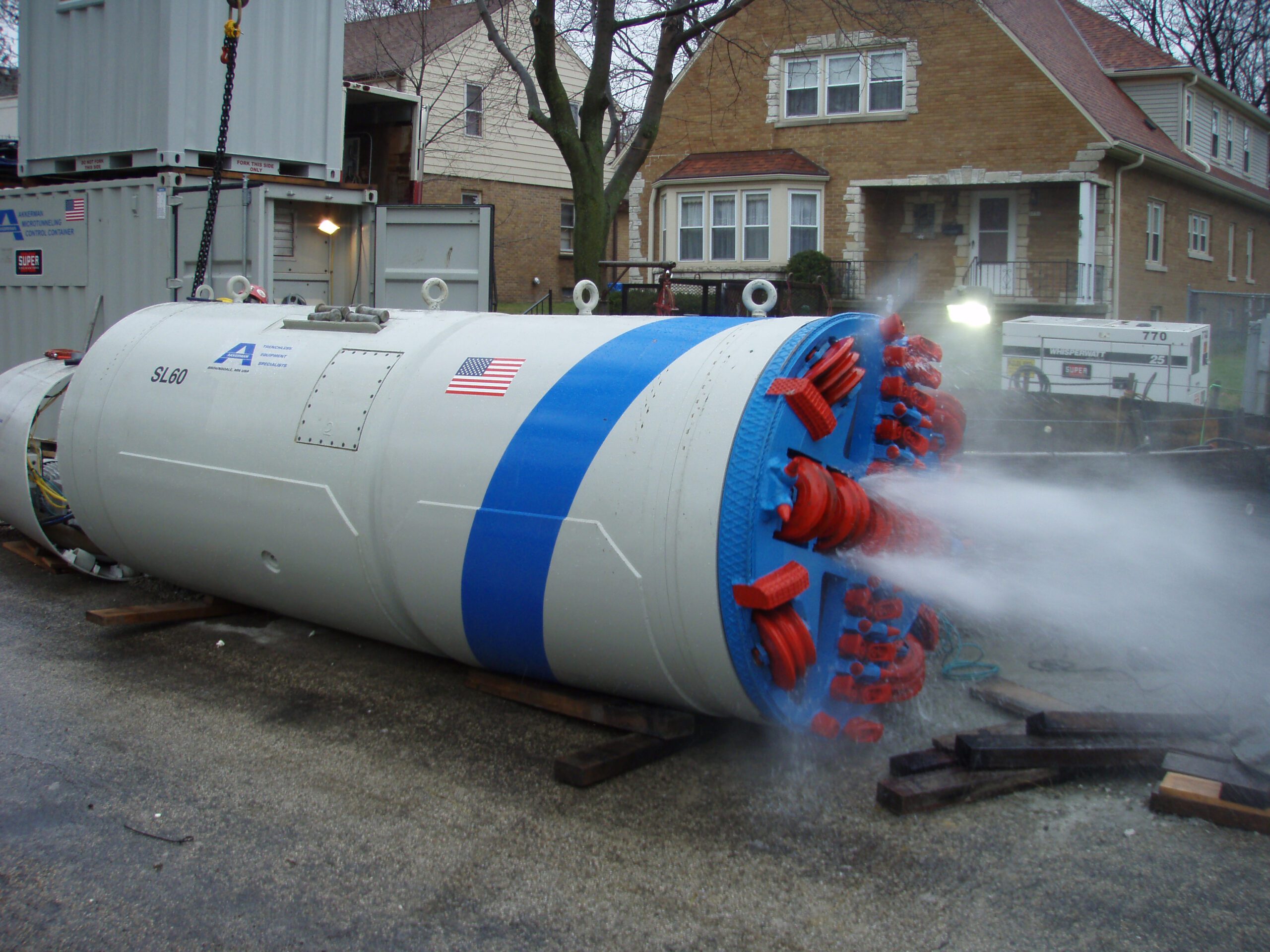

The SC‐115 High‐Pressure Jetting Pump provides high velocity jetting through jetting lines in the tunnel. The jetting travels to the cutter face to break down clay and silty spoil, clean the crushing chamber, and clean the cutter face for efficient spoil intake and flow in the slurry lines.

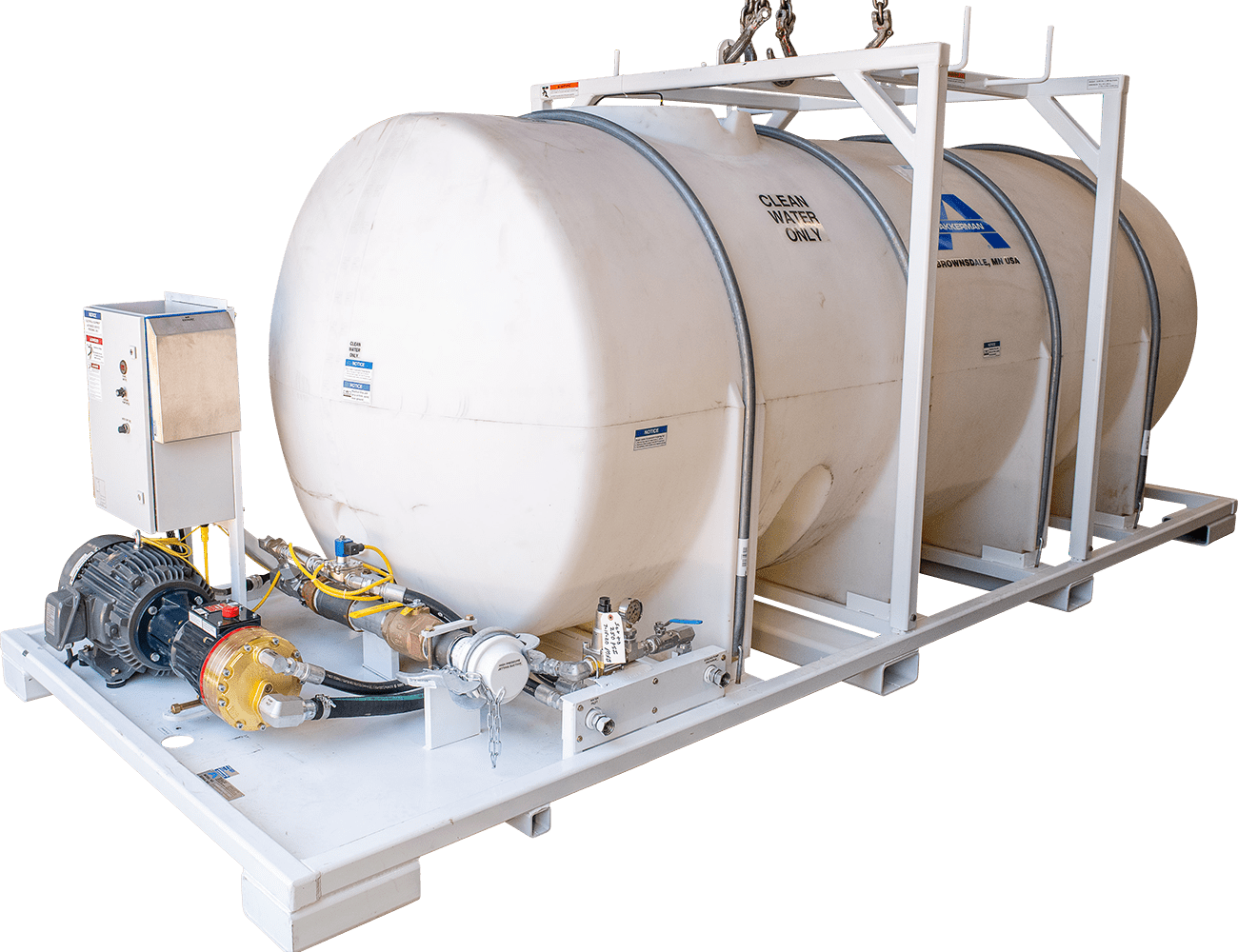

The Water Cooling Tank provides ample supply to cool the MTBM drive and booster pump motors and flushes seals for optimal system operation. The cool water flow also assists with temperature reduction in the tunnel, contributing to guidance system laser clarity. Water from the Water Cooling Tank, through a jacking frame valve, hoses in the tunnel and concludes the MTBM motor. The Water Cooling Tank assembly includes an electric variable speed, variable output, smart tank sensor, and digital readout of output flow.
FEATURES:
SC‑115 High Pressure Jetting Pump
- Provides high‑pressure jetting water to the MTBM cutter face to break down clay and silty spoil, clean the crushing chamber, and assist with spoil intake.
- Durable one‑piece cast‑iron frame.
- Pump pressure relief valve.
- Manual flow bypass valve to reduce outlet flow.
- Suction inlet connects to the water cooling tank.
Water Cooling Tank
- Smart tank sensor enables automatic fill.
- Large capacity to cool the MTBM main drive motor, booster pump, and flush seals.
- Universal across all Akkerman MTBM systems.
SPECIFICATIONS
Print This PageHigh Pressure Jetting Pump
| Model | Dimensions (L x W x H) | Weight | Main Pump / Motor |
|---|---|---|---|
| SC-115 | 36.25 x 37.75 x 14.75‐in. | 1,240 lbs | Max. Input Speed 75 HP |
Water Cooling Tank
| Dimensions (L x W x H) | Weight | Capacity | Main Pump / Motor |
|---|---|---|---|
| 16.84-in. x 5.9 x 6.7‐ft. | 3,500 lbs. | 1,685 gal. | 7.5 HP @ 1,200 rpm |
